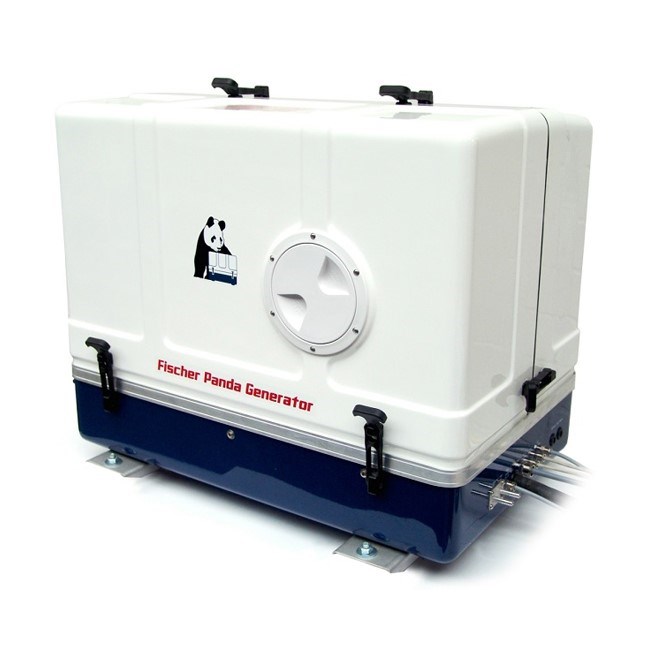

Fischer Panda 30ICx PMS 32kVA 27kW GFK 400V/50HZ/3

SKU Code: 0027629
Brand: Fischer Panda
Category: Marine Generators

AED 97535.00

Excluding 5% VAT

Out of stock

With 4-cylinder Water-cooled Kubota 1498ccm diesel engine Type: V1505IC
And Water-cooled Fischer Panda Alternator
( Three Phase, 400V / 50 Hz/3ph )
Nominal output : 27.0 kW (31.8kVA at cos phi = 0.85) at 3000RPM
Continuous :24.3kW (27kVA at cos phi = 0.85) at 3000RPM
Nominal Amps -39
Continuous Amps- 35
Complete set includes:
- Two pole relays for isolated ground
-12V starts system
-12V/40A alternator for battery charging
-Engine driven cooling water pump
-Heat exchanger for engine and alternator
-Belt driven impeller pump for the raw water circuit
-GFK sound insulation capsule 3D
(with one layer of heavy lining and one layer of special sound insulation foam)
-Remote control panel with on /off / preheat / start LCD hour meter and automatic
shut off of the generator in case of alarm
-Exhaust and engine temperature switch
-Oil pressure switch
-Oil temperature switch
-Winding temperature switch
-Fuel shut off solenoid for engine stop
-Fuses for 12V system
-Air filter
-X Control voltage regulation for 230V with actuator for output voltage control
-Automatic start booster (ASB) for easier starting of inductive load
-12 V fuel pump with inline filter and hose connectors
-4 pcs rubber mounts type: Fischer Panda
Dimensions: 1010 x 515 x 674 in mm. (L x W x H)
Weight: 403 kgs.
Sound level: 55db–7m, 65db-3m, 69db-1m
