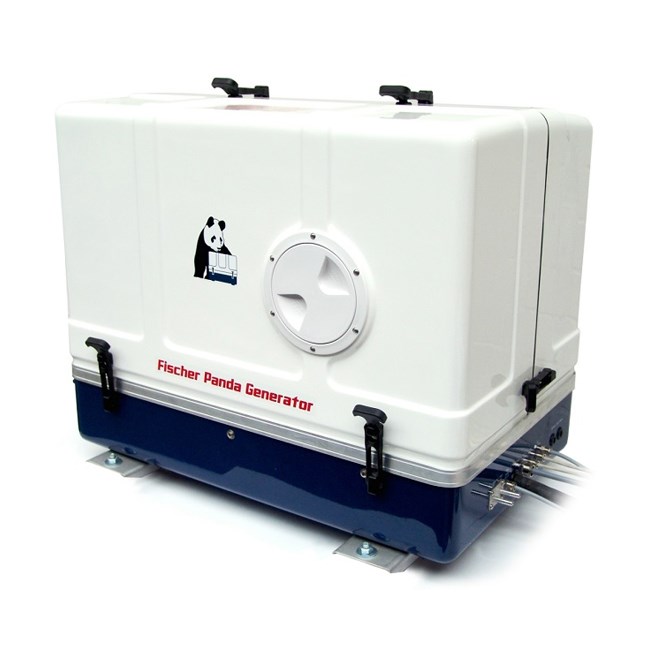

Fischer Panda Generator 15000x PMS Compact Power

SKU Code: 0000170
Brand: Fischer Panda
Category: Marine Generators

AED 53000.00

Excluding 5% VAT

In Stock

Features:

With 3-cylinder Water-cooled Kubota 898 ccm diesel engine Type: D902 And Water-cooled Fischer Panda Alternator (230V/50Hz/Single phase )
Nominal output : 12.7 KW (15.0 KVA at cos phi = 0.85)
Continuous output : 11.6 KW (13.7 KVA at cos phi = 0.85) at 3000 RPM

Complete set includes:
12 V starts system
12 V alternator for battery charging
Engine driven cooling water pump
Heat exchanger for engine and alternator
Direct engine driven impeller pump for the raw water circuit
GFK(Fiber Glass) sound insulation capsule 3D (with one layer of heavy lining and one layer of special sound insulation foam)
Remote Control Panel with on/off/preheat/start LCD hour meter and automatic shut off of the generator in case of alarm
Exhaust and engine temperature switch
Oil pressure switch
Oil temperature switch
Winding temperature switch
Fuel shut off solenoid for engine stop
Fuses for 12V system
Air filter
X Control voltage regulation for 230V with actuator for output voltage control
Automatic starter booster (ASB) for easier starting of inductive load
12 V fuel pump with inline filter and hose connectors
4 pcs rubber mounts
Dimensions 740 mm x 480 mm x 600 mm. (L x W x H)
Weight 248 kgs
Sound level 54db-7m, 64db-3m, 68db-1m
