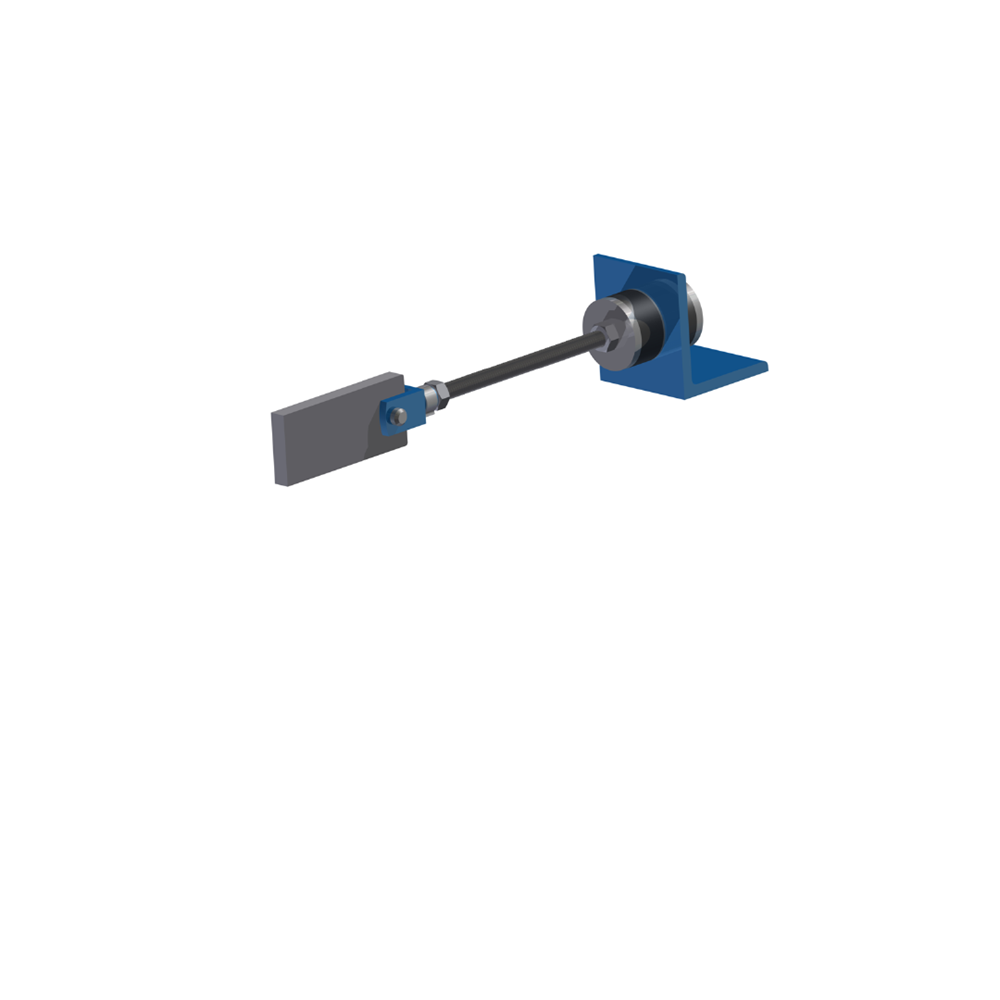

Sliding points supports TI 250

Category: Exhaust supports

Price on request

Sliding points allow the longitudinal movement within the system caused by the thermal expansion and contraction in the exhaust line. The rubber elements in the sliding points ensure that the vibrations are not transmitted to the rest of the ship.

Loggers sliding points are designed to handle both tension and contraction forces.If required ,these components can be shortened to fit any situation.So that they are able to cope with very wide range of weights and distances.In addition, the sliding points can be mounted at different locations and various positions and various positions, such as :

Hanging position
support position
Funnel position

The sliding points are typically mounted in pairs at an angle of 90 degrees. when the pipe of the exhaust line is placed horizontally ,the sliding points are even capable to carry the weight of the system.
