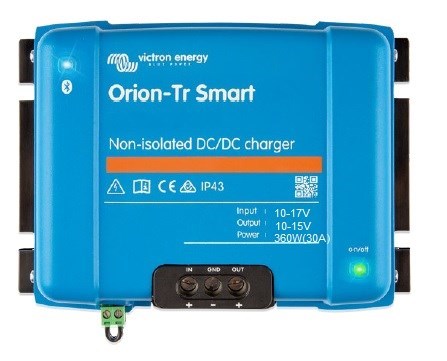

B2B Chargers (battery to battery/DC to DC Chargers).
For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.
Input voltage range (1) 10-17V
Under voltage shut down 7V
Under voltage restart 7,5V
Nominal output voltage 12,2V
Output voltage adjust range 10-15V
Output voltage tolerance +/- 0,2V
Output noise 2mV rms
Cont. output current at nominal output voltage and 40°C : 30A
Maximum output current (10 s) at nominal output voltage : 40A
Short circuit output current 60A
Cont. output power at 25°C 430W
Cont. output power at 40°C 360W
Efficiency 87%
No load input current < 80mA
Standby current Less than 1mA
Operating temperature range -20 to +55°C (derate 3% per °C above 40°C)
Humidity Max. 95% non-condensing
DC connection Screw terminals : Maximum cable cross-section 16 mm² (AWG6)
Weight : 1.8 kg
