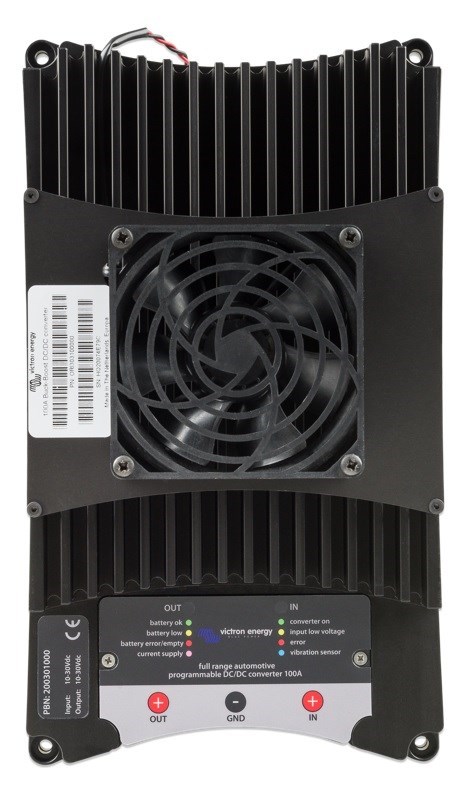

100A Buck-Boost DC/DC converter

DC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. The Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. Since, when the engine is running, these dynamos (powered by the on-board electronics of Euro 5 and 6 engines) do not always emit the correct charging current, a DC-DC converter is essential for charging the service battery properly. DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines) The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages. Input voltage range 10-30V Under voltage threshold 10V Output voltage range 10-30V Maximum charge current 12V : 100A and 24V : 50A Power consumption Converter off, LEDs off (power save mode) 7 mA On/off input (pin 1, purple wire) ‘On’ threshold voltage > 2V Maximum input voltage 30V Output pin 1 and pin 2 Output voltage if activated Vpinout = Vin Maximum current (per pin) Ipinout = 1A Operating temperature range -25 +60°C Ambient temperature Max current: up to 60°C Weight 4,1kg Dimensions 288 x 162 x 95mm
