MG Master LV 24-48V/1000A (M12)

SKU Code: MGMLV481001
Brand: MG Energy Systems
Category: MG Lithium Batteries

AED 6000.00

Excluding 5% VAT

In Stock

Maximum number of batteries in series 2 (= 48 V)
Maximum number of batteries in parallel 48
Supply voltage range 18 ... 58 VDC
Main safety contactor current continuous 1000 A

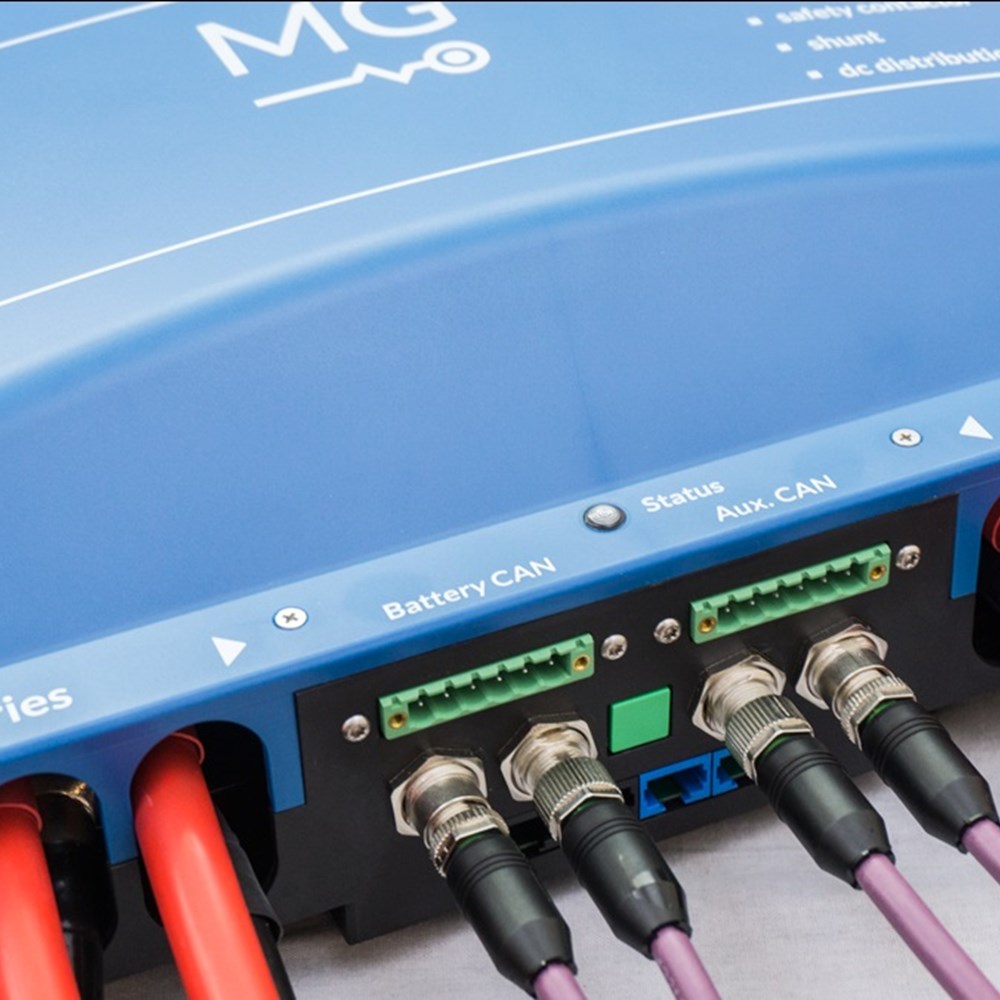

Communication CAN-Bus (NMEA2000, SMA, custom on request)
IO Aux. output 13,5 V / 1 A, short circuit protection, overcurrent protection
Allow-to-charge (switched voltage) 13,5 V / 1 A, short circuit protection, overcurrent protection
Allow-to-discharge (switched voltage) 13,5 V / 1 A, short circuit protection, overcurrent protection
Allow-to-charge (relay output) 0,8 A @ 60 VDC, potential free
Allow-to-discharge (relay output) 0,8 A @ 60 VDC, potential free
Programmable contact (relay output) 0,8 A @ 60 VDC, potential free
External status signal 13,5 V / 140 mA short circuit protection, overcurrent protection
Emergency shutdown input (available on M12 CAN-bus connectors) : Emergency shutdown to open main contactor hardwired. (To order with M12 connectors use M12 as suffix. Example: MGMLV481000M12) Enclosure Material ABS (reinforced)

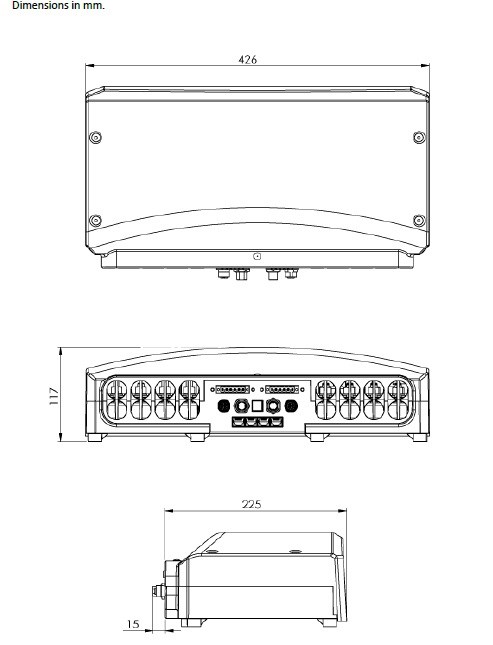

Dimensions 426 x 225 x 117 mm
Weight 9,4 kg
Environmental Operating temperature range -20 °C to 50°C
Humidity Max. 95% (non-condensing)
Protection class IP22
