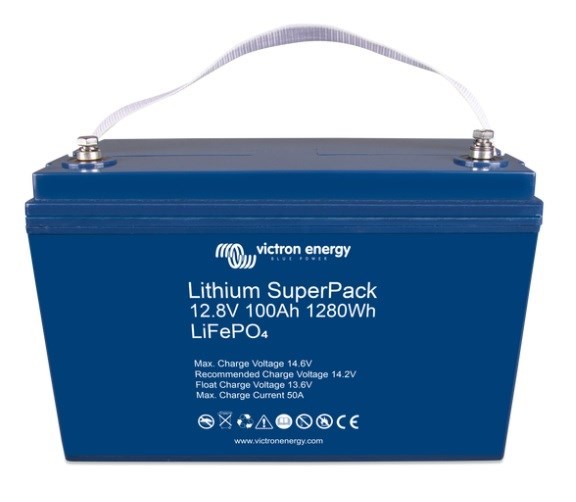

Lithium SuperPack 12.8V/100Ah (M8) High Current

Integrated BMS and safety switch The SuperPack batteries are extremely easy to install, not needing any additional components. The internal switch will disconnect the battery in case of over discharge, over charge or high temperature. The batteries can be connected in parallel. Series connection is not allowed. Chemistry LiFePO4 Nominal voltage 12,8 V Nominal capacity @ 25 °C 20 Ah 100 Ah Nominal capacity @ 0 °C 80 Ah Nominal energy @ 25 °C 1280 Wh Cycle life @ 80 % DoD and 25 °C 2500 cycles Max. cont. discharge current (1) 100 A Peak discharge current (10 sec) 150 A End of discharge voltage 10 V Charge voltage, absorption (2) 14,2 V - 14,4 V Charge voltage, float 13,5 V Max. cont. charge current 100 A Parallel configuration Yes, unlimited Series configuration No Operating temperature Discharge: -20 °C to +50 °C Charge: +0 °C to +45 °C (3) Storage temperature -40 °C to +65 °C Humidity (non-condensing) Max. 95 % Protection class IP 43 Power connection (threaded inserts) M8 Dimensions (h x w x d) mm 220 x 330 x 172 Weight 14 kg
