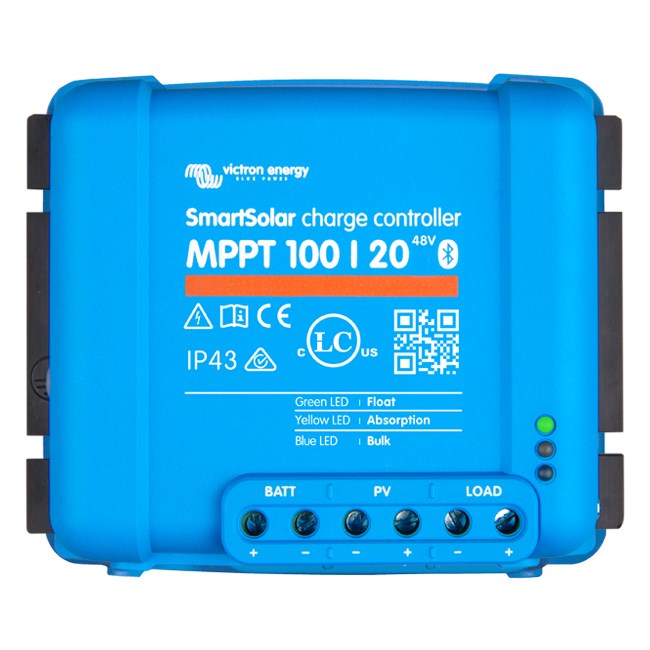

Victron SmartSolar MPPT 100/20_48V

SKU Code: SCC110020160R
Brand: Victron Energy
Category: Solar MPPT Smart Charge Controllers

AED 660.00 AED 610.00

Excluding 5% VAT

In Stock


Ultra - fast Maximum Power Point Tracking (MPPT)\ - Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.

Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result i s often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Batter Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programming, real-time data and history display options
Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots.
ColorControl panel
Battery voltage 48V
Rated charge current 20A
Nominal PV power, 48V 1160W
Max. PV short circuit current 20A
Maximum PV open circuit voltage 100V
Automatic load disconnect Yes
Peak efficiency 98%
Self-consumption 15 mA
Charge voltage absorption 57.6 (adjustable)
Charge voltage float 55.2V (adjustable)
Charge algorithm multi-stage adaptive
Temperature compensation -16 mV / °C resp. -32 mV / °C
Max. Continuous load current 1A
Low voltage load disconnect 44.4V or 47.2V or Battery Life algorithm
Low voltage load reconnect 52.4V or 56V or Battery Life algorithm
Protection Battery reverse polarity (fuse)Output short circuit/ Over temperature
Operating temperature -30 to +60°C (full rated output up to 40°C)
Humidity 95%, non-condensing
Power terminals 6 mm² / AWG10
Protection category IP43 (electronic components), IP22 (connection area)
Weight 0.65 kg
Dimensions (h x w x d) 100 x 113 x 60 mm
