SS Expansion joints Bellow DN80-1200 Balance-IX

Category: SS expansion bellows

Price on request

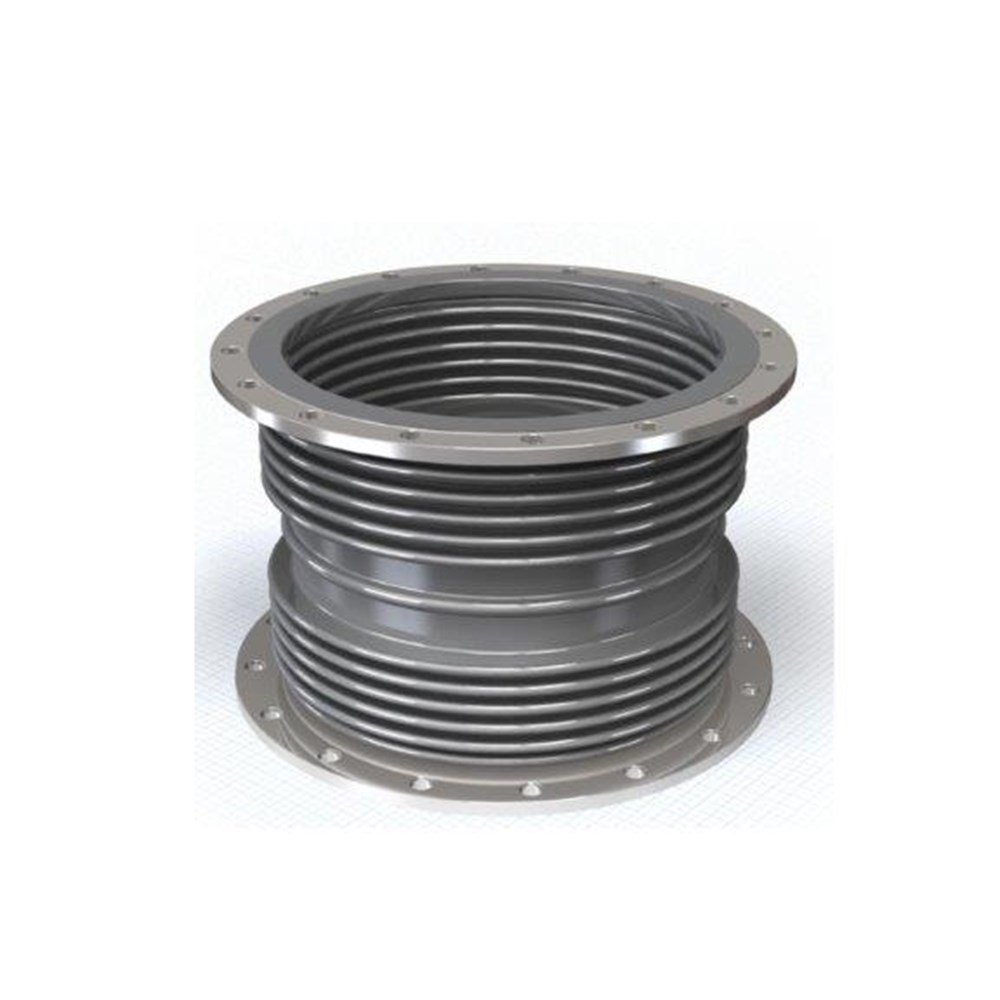

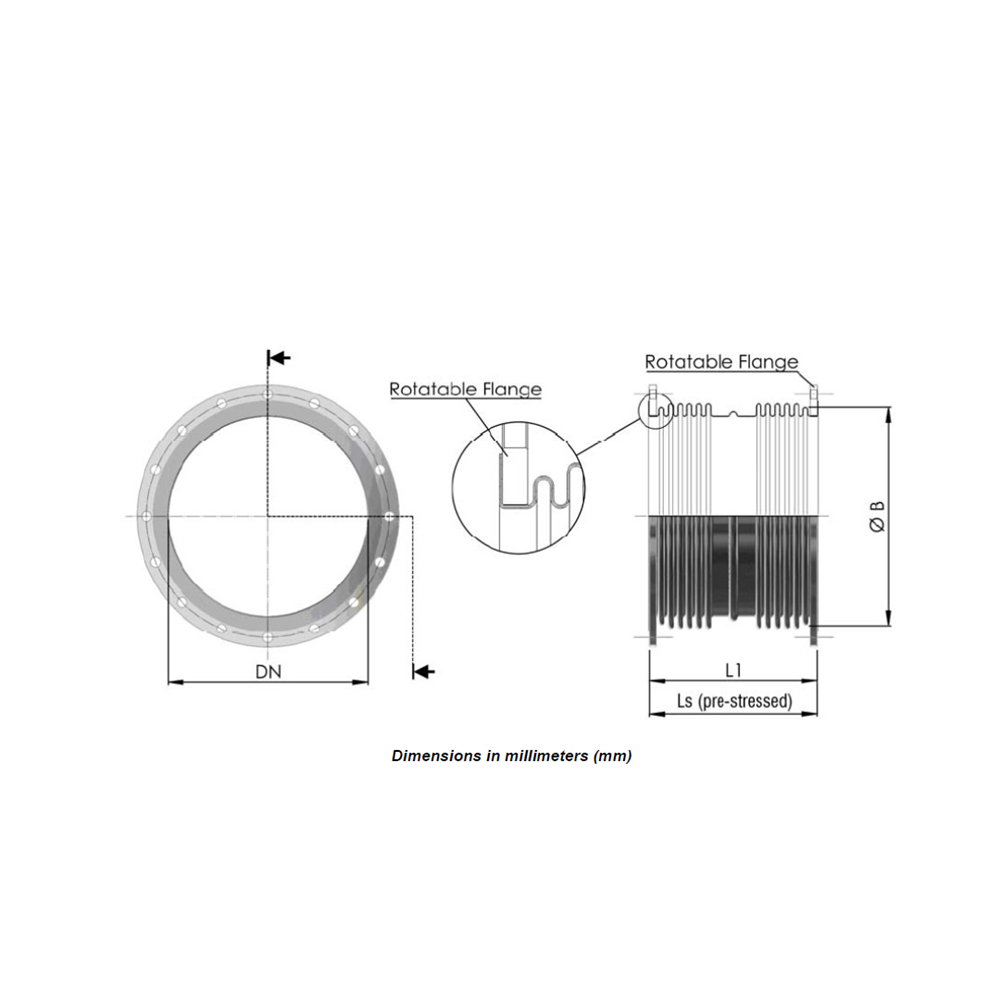

The Balance IX twin is relatively long stainless steel expansion joint with twin bellows construction and rotatable flanges,It is used for compensating movements and misalignment in exhaust systems.Balance IX twin is used to compensate large lateral movements. Due to the double ply bellows this compensator is more flexible in comparision to the similar single ply compensator. Balance IX twin is supplied at pre-stressed length in order to reduce the reaction forces to the foundation in operating conditions(high temperature). The maximum operating temperature of the balance XI is +550 degree C , the maximum working pressure 2.5bar (120 degree C.) SS expansion joints AISI321, Double ply bellows. with rotatable flanges acc.DIN 86044 Standard length. Alternative flange dimensions available.
