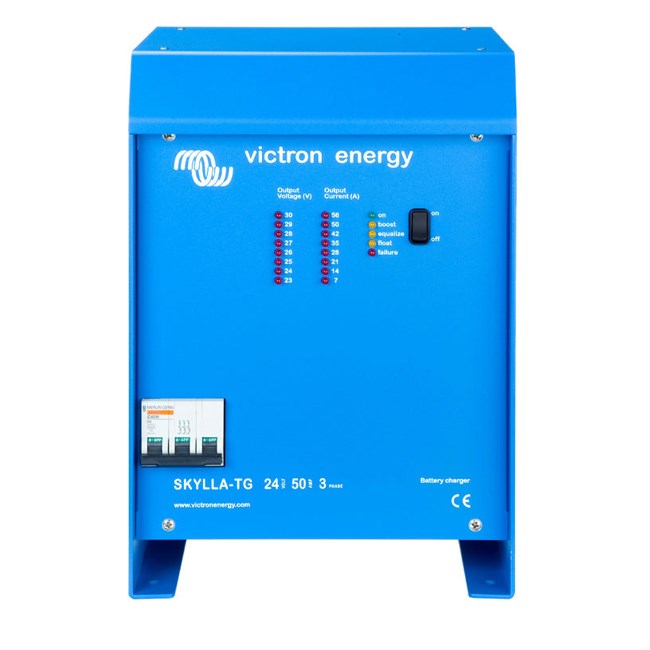

Skylla 24 Volt 50 Amp 3-Phase 400V Battery Charger

SKU Code: STG024050300
Brand: Victron Energy
Category: 3 Phase Battery Charger

AED 5225.00

Excluding 5% VAT

Out of stock

Features:
Perfect chargers for any type of battery: Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system. In particular, sealed maintenance free batteries must be charged correctly in order to ensure a long service life. Overvoltage will result in excessive gassing and venting of a sealed battery. The battery will dry out and fail.
Suitable for AC and DC supply (AC-DC and DC-DC operation): Except for the 3-phase input models, the chargers also accept a DC supply. Controlled charging: Every TG Charger has a microprocessor, which accurately controls the charging in three steps. The charging process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes.
Use of TG Chargers as a power supply: As a result of the perfectly stabilized output voltage, a TG Charger can be used as a power supply if batteries or large buffer capacitors are not available.
Two outputs to charge 2 battery banks (24V models only): The TG Chargers feature 2 isolated outputs. The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery.
To increase battery life: temperature compensation Every Skylla TG Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries which otherwise might be overcharged and dry out due to venting.
Battery voltage sense In order to compensate for voltage loss due to cable resistance, TG Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.
Input voltage (VAC) 3 x 400
Input voltage range (VAC) 320-450
Input voltage range (VDC) NA
Frequency(Hz) 45-65
Power factor 1
Charge voltage absorption (VDC) 28,5
Charge voltage float (V DC) 26,5
Charge current house batt. (A) (2) 50
Charge current starter batt. (A) 4
Charge characteristic UoUo (three step)
Battery capacity (Ah) 250-500
Temperature sensor
Can be used as power supply
Remote alarm Potential free contacts 60V / 1A (1x NO and 1x NC
Forced cooling
Protection (1) a,b,c,d
Operating temp. range 40 to +50°C (-40 - 122°F)
Humidity (non-condensing) max 95%
Material Aluminium
Battery-connection M8 studs
230 V AC-connection screw-clamp 2,5 mm² (AWG 6)
Protection category IP 21
Weight kg (lbs) 13 (28)
Dimensions hxwxd in mm((hxwxd in inches) 365x250x257 (14.4x9.9x10.1)
