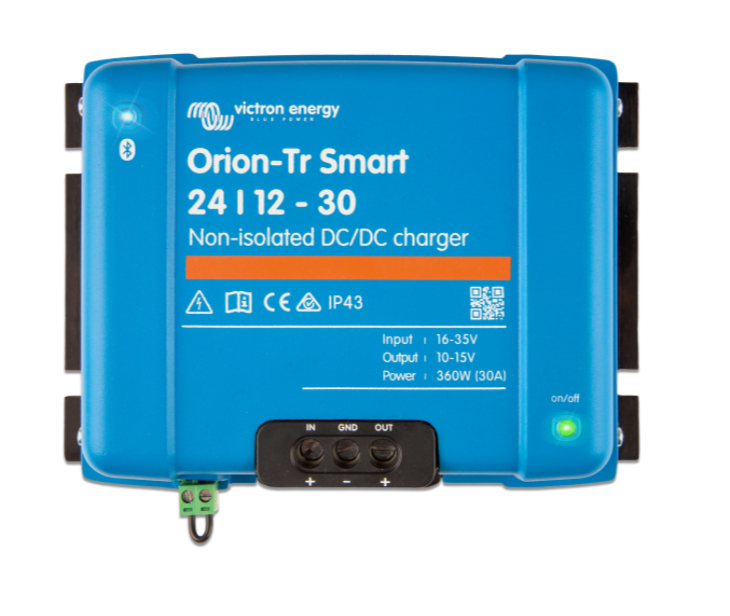

Orion-Tr Smart 24/12-30A (360W) Non-isolated DC-DC

SKU Code: ORI241236140
Brand: Victron Energy
Category: DC-DC Charger

AED 900.00

Excluding 5% VAT

In Stock

B2B Chargers (battery to battery/DC to DC Chargers)
For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.

Input voltage range (1) 20-35V
Under voltage shut down 14V
Under voltage restart 15V
Nominal output voltage 12,2V
Output voltage adjust range 10-15V
Output voltage tolerance +/- 0,2V
Output noise 2mV rms
Cont. output current at nominal output voltage and 40°C : 30A
Maximum output current (10 s) at nominal output voltage : 45A
Short circuit output current : 60A
Cont. output power at 25°C : 430W
Cont. output power at 40°C : 360W
Efficiency 88%
No load input current 100mA
Operating temperature range -20 to +55°C (derate 3% per °C above 40°C)
Humidity Max. 95% non-condensing
DC connection Screw terminals : Maximum cable cross-section 16 mm² (AWG6)
Weight : 1,8 kg
