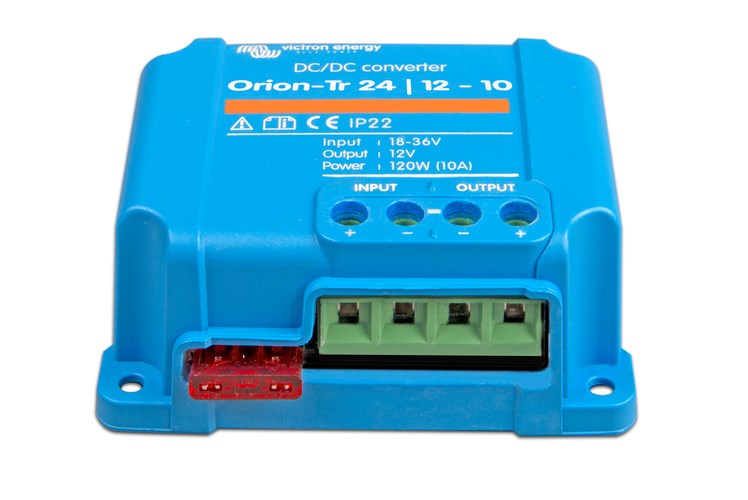

Orion-Tr 24/12-10 (120W) DC-DC converter

SKU Code: ORI241210200
Brand: Victron Energy
Category: DC-DC converters

AED 170.00 AED 115.00

Excluding 5% VAT

In Stock

Enquiry
High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.

IP43 protection
When installed with the screw terminals oriented downwards

Screw terminals
No special tools needed for installation

Specification :
Input voltage range 18-35 V
Output voltage 12.5 V
Efficiency 97%
Continuous output current 10 A
Max. Output current 12 A
Galvanic isolation no
Off load current < 45 mA
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
DC connection : Screw terminals
Maximum cable cross-section 6 mm² AWG10
Weight kg 0,2
Dimensions hxwxd in mm 73x94x37
