Features:

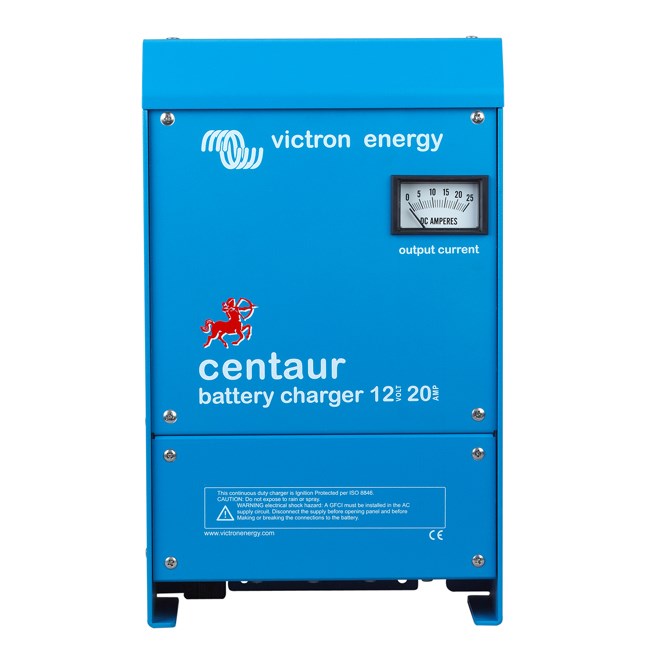

The new Centaur range of battery chargers from Victron Energy have been designed to be a true world-wide product.
Charger will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz meaning they can be used anywhere in the world.
Crucially, and unlike other products that state universal input, the Centaur range will maintain full output power within the entire specified range. The Centaur model will also work on 90-400VDC input, making it a perfect Charging DC-DC Converter in a Diesel Electric system. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.
The range spans 12V and 24V models from 16A through to 100A. The fact that the same product is suitable for any boat, regardless of the intended market or where the boat will be taken, is a great advantage to the boat builder and the boat owner in equal measure. Conscious of the price sensitivity in this competitive market, a single model range for all markets also means more competitive costs. Without compromising Victron Energy brand qualities this range is comprehensive, competitive and compatible wherever in the world they might be used.
Input voltage (VAC)
|
90-265 |
Input voltage range (VDC)
|
90-400 |
Frequency(Hz)
|
45-65 |
Power factor
|
1 |
Charge voltage absorption (VDC)
|
14.3 |
Charge voltage float (V DC)
|
13.5 |
Output banks
|
3 |
Charge current (A)
|
20 |
Charge characteristic
|
IUoU (Three stage charging) |
Battery capacity (Ah)
|
80-200 |
Temperature sensor
|
Internal |
Forced cooling
|
temperature and current controlled fan |
Protection
|
Output short circuit, over temperature |
ProtectionOperating temp. range
|
-20 to 60°C (0 - 140°F) |
Humidity (non-condensing)
|
max 95% |
Material
|
Aluminium |
Battery-connection
|
M6 studs |
AC-connection
|
screw-clamp 4 mm² (AWG 6) |
Protection category
|
IP 20 |
Weight kg (lbs)
|
3.8 (8.4) |
Dimensions hxwxd in mm (hxwxd in inches)
|
355x215x110 (14.0x8.5x4.3) |
