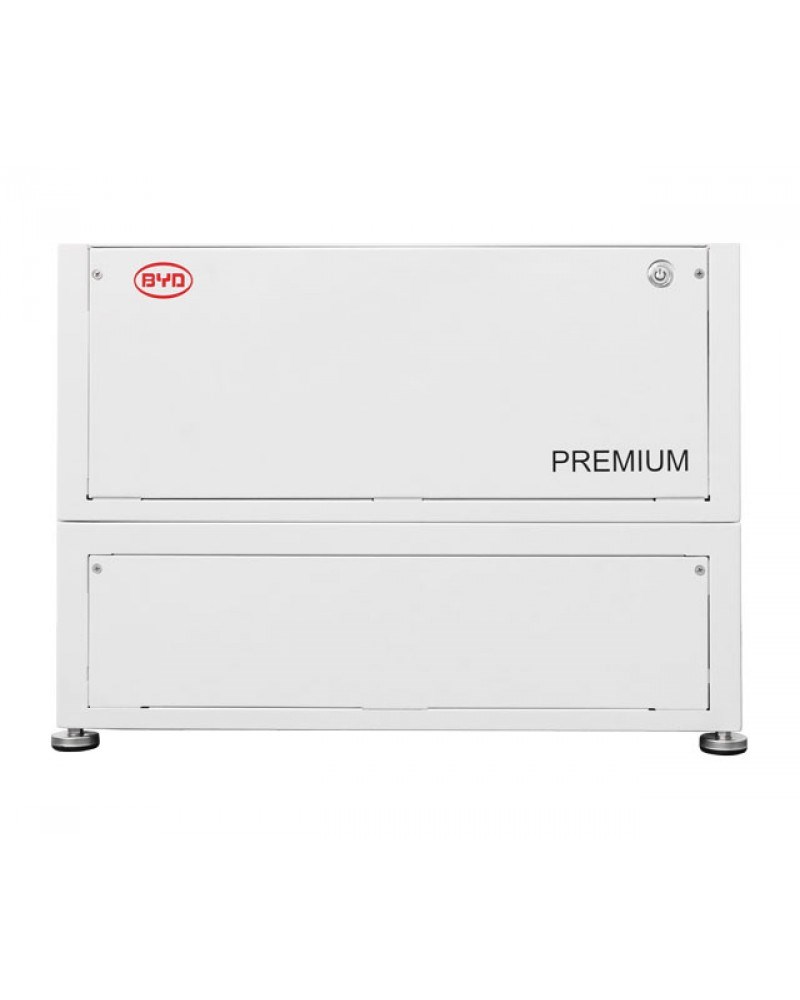

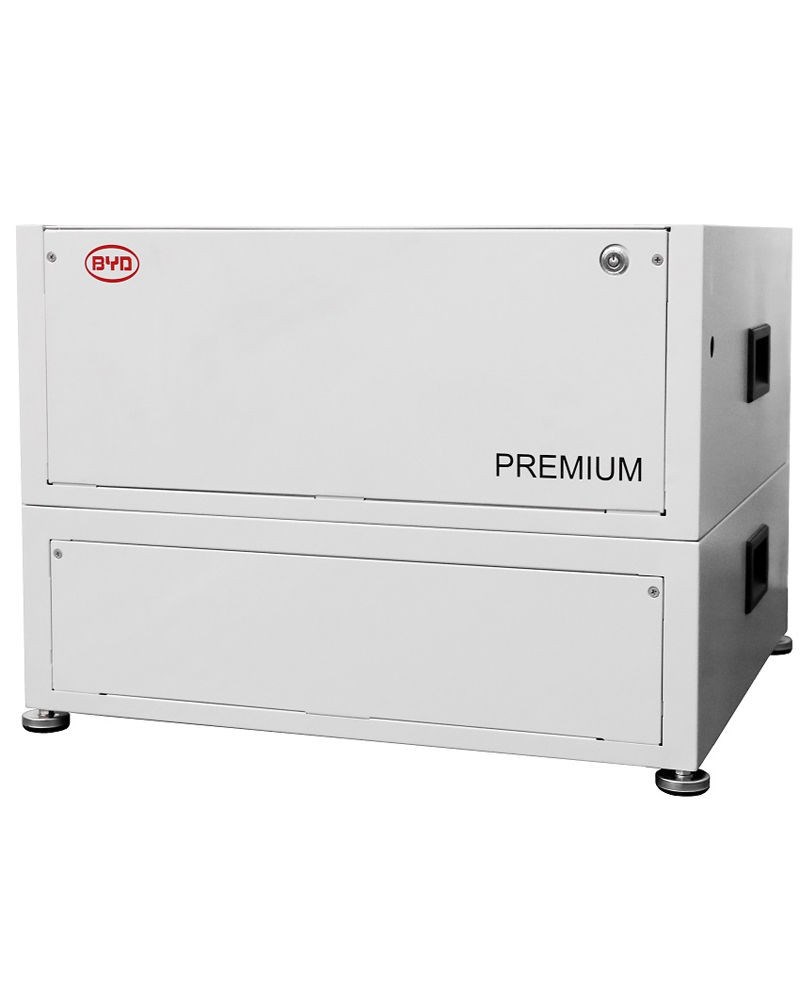

BYD Battery-Box Premium LVL 15.4Kwh -51.2V

SKU Code: LVL 15.4Kwh -51.2V

Brand: BYD

Category: BYD Lithium Batteries

AED 32000.00 AED 28500.00

Excluding 5% VAT

In Stock

Enquiry

Number of Modules: 2
Usable Energy [1] 15.36 kWh
Max Cont. Output Current [2] 250 A
Peak Output Current [2] 375 A, 5 s
Dimensions (H/W/D) 500 x 575 x 650 mm
Weight 164 kg
Nominal Voltage 51.2 V
Operating Voltage 40-59 V
Operating Temperature -10 °C to +50°C
Battery Cell Technology : Lithium Iron Phosphate (cobalt-free)
Communication: CAN/RS485
Enclosure Protection Rating : IP20
Round-trip Efficiency ≥95%

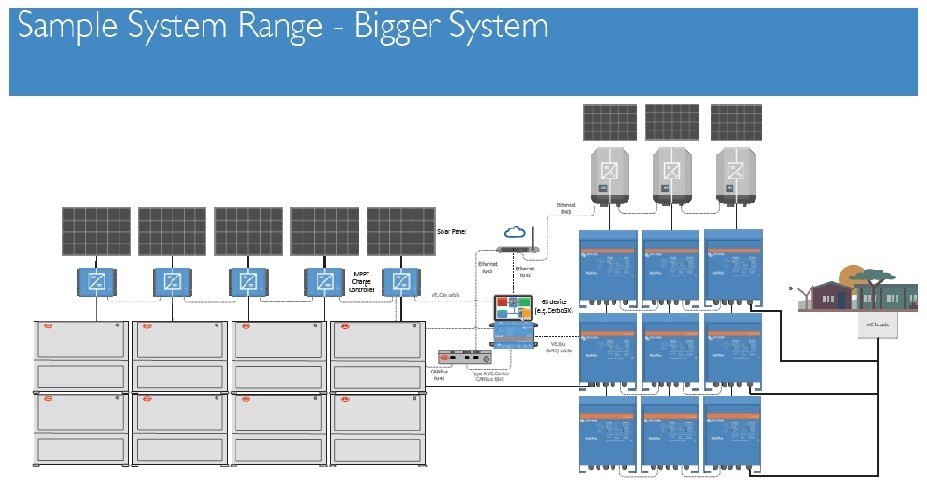

Scalability: Max. 64 in Parallel (983 kWh)
Certification IEC62619 / CE / CEC / UN38.3
Applications: ON Grid / ON Grid + Backup / OFF Grid
Rated DC power : 12.8KW
Short Circuit Current : 400A

Datasheet LVL
