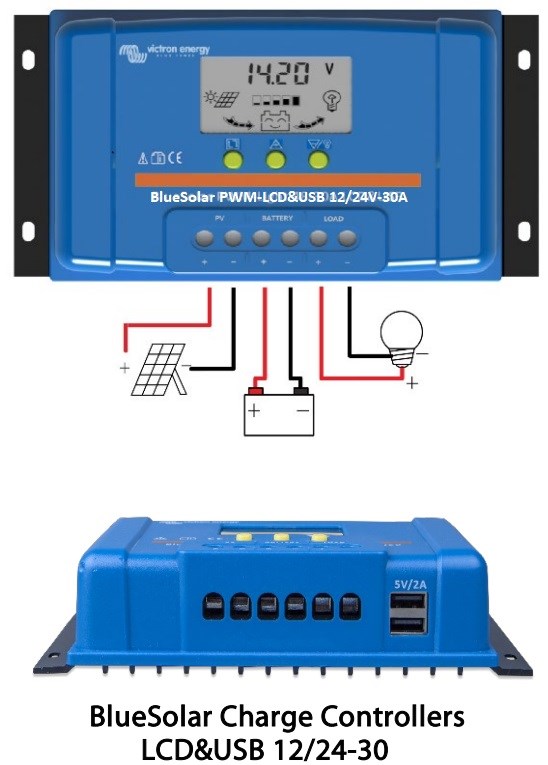

Liquid crystal display :
For status monitoring and set-up
Load output :
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote
control connected to the load output. A special interface cable may be needed, please see the manual.
The connect and disconnect voltages are adjustable.
Day/night timing of the load output :
This option allows for a pre-set ON-time after dusk.
Programmable battery charge algorithm :
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)
Two 5 Volt USB outputs :
Maximum current (both outputs combined): 2A
Battery Voltage 12/24 V with automatic system voltage detection
Rated charge current 30A
Automatic load disconnect Yes
Maximum solar voltage 28V / 55V (1)
Self-consumption < 10 mA
Load output Manual control + low voltage disconnect +timer
Protection : Battery reverse polarity (fuse) , Output short circuit, Over temperature
Overload protection :
Shut down after 60 s in case of 130% load
Shut down after 5 s in case of 160% load
Short circuit: immediate shut down
Grounding : Common positive
Operating temp. range -35 to +60°C (full load)
Protection class IP20
Terminal size 16mm² / AWG6
Dimensions (h x w x d) 101x184x47mm
