Integrated BMS and safety switch

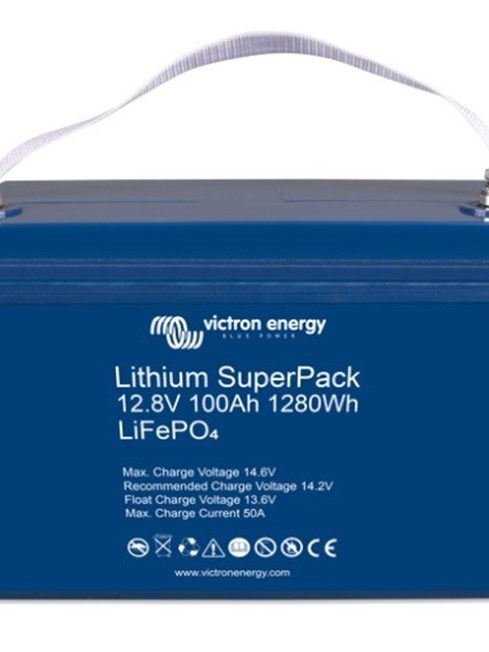

The SuperPack batteries are extremely easy to install, not needing any additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The batteries can be connected in parallel. Series connection is not allowed.
Chemistry LiFePO4
Nominal voltage 12,8 V
Nominal capacity @ 25 °C 20 Ah 100 Ah
Nominal capacity @ 0 °C 80 Ah
Nominal energy @ 25 °C 1280 Wh
Cycle life @ 80 % DoD and 25 °C 2500 cycles
Max. cont. discharge current (1) 100 A
Peak discharge current (10 sec) 150 A
End of discharge voltage 10 V
Charge voltage, absorption (2) 14,2 V - 14,4 V
Charge voltage, float 13,5 V
Max. cont. charge current 100 A
Parallel configuration Yes, unlimited
Series configuration No
Operating temperature Discharge: -20 °C to +50 °C Charge: +0 °C to +45 °C (3)
Storage temperature -40 °C to +65 °C
Humidity (non-condensing) Max. 95 %
Protection class IP 43
Power connection (threaded inserts) M8
Dimensions (h x w x d) mm 220 x 330 x 172
Weight 14 kg
