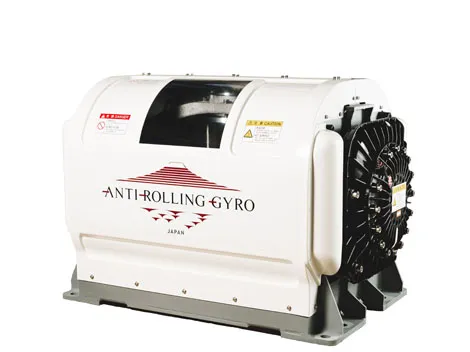

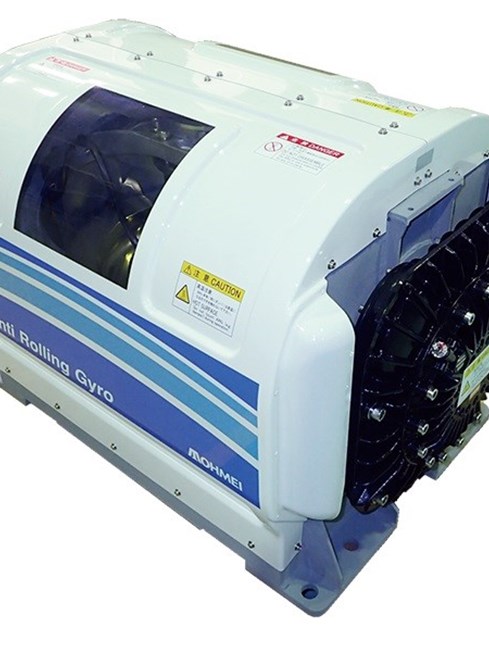

ARG175T Anti-Rolling Gyro Stabilizer
Superior Stability for 30–50 ft Vessels
The ARG175T (Model: MSM-17500T-A1) by TOHMEI delivers exceptional roll reduction for vessels up to 25 tons and lengths between 30 to 50 feet. With a compact, air-cooled design and an impressive 17,500 Nm of anti-rolling torque, it ensures superior stability at anchor, during trolling, or at low cruising speeds.
Key Features
High Torque Output: 17,500 Nm for effective stabilization in various sea conditions.
Air-Cooled System: Eliminates the need for seawater plumbing, simplifying installation and reducing maintenance.
Quick Spool-Up: Reaches operational speed in just 35 minutes.
Compact & Lightweight: Weighs 380 kg, with dimensions of H630 × W950 × D620 mm, facilitating easy integration into various vessel types.
Versatile Power Compatibility: Operates on both single-phase (220–240V) and three-phase (200–240V) AC power sources.
Technical Specifications
Specification Details
Model MSM-17500T-A1
Anti-Rolling Torque 17,500 Nm
Rated RPM 4,600 rpm
Angular Momentum 3,500 N·m·s
Spool-Up Time 35 minutes
Power Consumption Single-phase: 3.5–4.3 kW
Three-phase: 3.0–4.0 kW
Input Voltage Single-phase: 220–240V, 50/60 Hz
Three-phase: 200–240V, 50/60 Hz
Weight 380 kg (838 lbs)
Gyro Dimensions (H×W×D) 630 × 950 × 620 mm
Motor Driver Dimensions (H×W×D) 400 × 350 × 187 mm
Why Choose the ARG175T?
Enhanced Comfort: Significantly reduces vessel roll, ensuring a smoother and more enjoyable experience for passengers and crew.
Simplified Installation: No through-hull fittings or external appendages, preserving hull integrity and reducing drag.
Low Maintenance: Air-cooled design minimizes maintenance requirements compared to water-cooled systems.
Proven Reliability: Engineered with aerospace-grade technology, ensuring durability and consistent performance.
