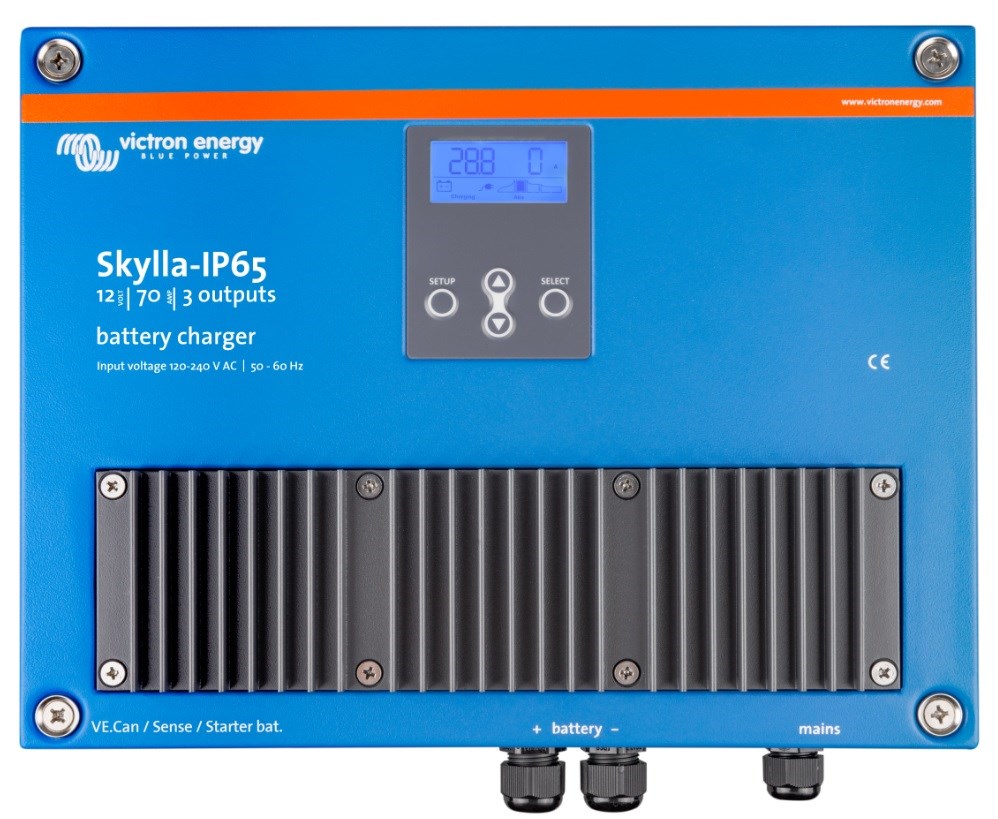

A powerful, waterproof and intelligent battery charger with a 7-stage adaptive charge algorithm, suitable for a wide range of battery types and chemistries featuring a dedicated Lithium-ion charge algorithm.
The wide range universal input voltage adds flexibility to the installation, the charger will maintain its full output power no matter where it is located in the world.
The IP65 rating makes this charger especially suitable for marine, mobile, and industrial applications and it can withstand the rigors of an adverse environment: heat, humidity and salt air.
Input voltage (VAC) 120/230 V
Input voltage range (VAC) 90-265 V
Frequency 45-65 Hz
Charge voltage 'absorption' (1) 14,4 V
Charge current (2) 70 A 3 x 70 A (max total output: 70 A)
Charge current starter batt. (A) n. a.
Charge algorithm 7 stage adaptive
Battery capacity 350-700 Ah
Charge algorithm, Li-Ion 3 stage, with on-off control or CAN-bus control
Temperature sensor Yes
Can be used as power supply Yes
Remote on-off port Yes (can be connected to a Li-Ion BMS)
CAN-bus communication port (VE.Can) Two RJ45 connectors, NMEA2000 protocol, not isolated
Synchronised parallel operation Yes, with VE.Can
Alarm relay DPST AC rating: 240 VAC/4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Forced cooling Yes (internal air circulation)
Protection Battery reverse polarity (fuse) Output short circuit Over temperature
Operating temp. range -20 to 60 °C (Full output current up to 40 °C)
Humidity (non-condensing) max 95 %
Battery-connection M6 bolts
230 VAC-connection screw-clamp 6mm² (AWG 10)
Protection category IP65
Weight 6 kg
Dimensions (hxwxd) 401 x 265 x 151 mm
