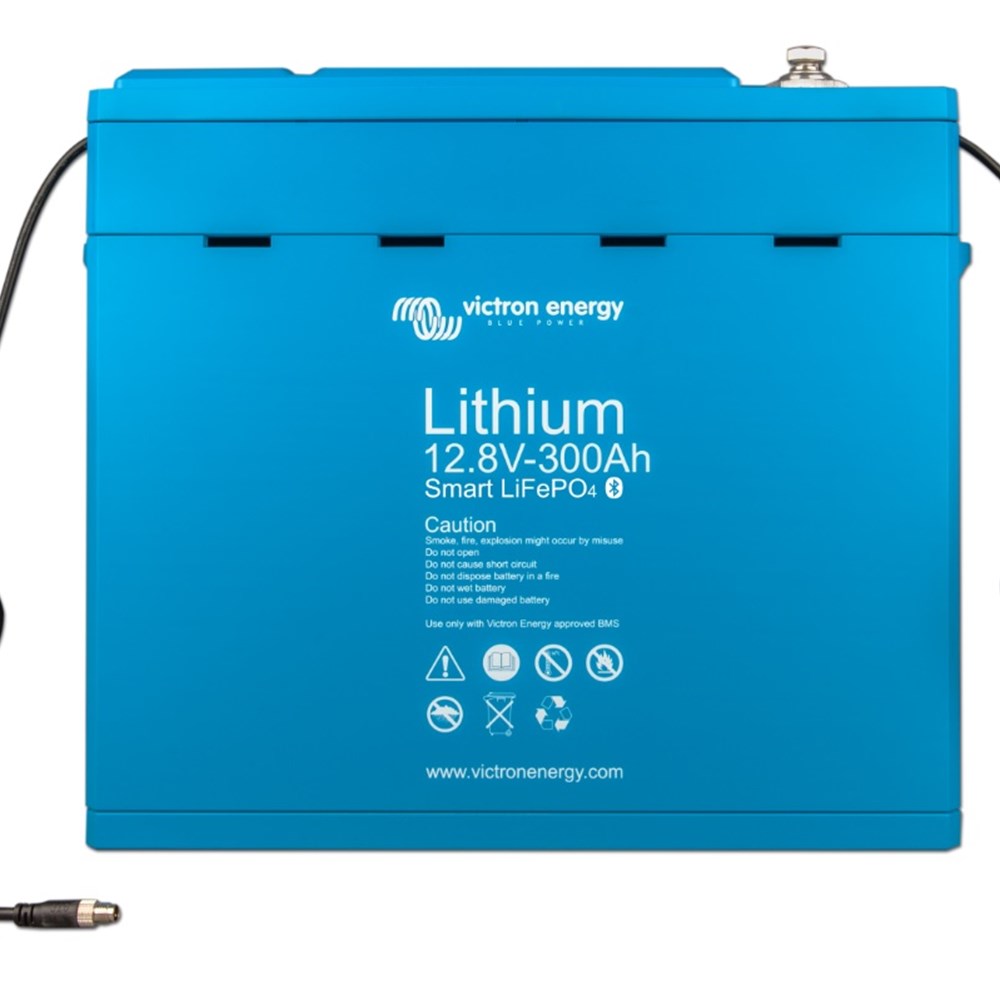

LiFePO4 Battery 12,8V/300Ah Smart

Nominal voltage 12,8V
Nominal capacity @ 25°C* 300Ah
Nominal capacity @ 0°C* 240Ah
Nominal capacity @ -20°C* 150Ah
Nominal energy @ 25°C* 3840Wh
80% DoD 2500 cycles
70% DoD 3000 cycles
50% DoD 5000 cycles
Maximum continuous discharge current 600A
Recommended continuous discharge current ≤300A
End of discharge voltage 11,2V
Operating temperature Discharge: -20°C to +50°C Charge: +5°C to +50°C
Storage temperature -45°C to +70°C
Humidity (non-condensing) Max. 95%
Protection class IP 22
Charge voltage Between 14V/28V and 14,4V/28,8V (14,2V/28,4V recommended)
Float voltage 13,5V/27V
Maximum charge current 600A
Recommended charge current ≤150A
Power connection (threaded inserts)
